pySynhasor

IEEE C37.118.2 is a one of the communication protocols for [[Synchrophasor]] technology. IEEE 1344 protocol improved over time and replaced by C37.118 protocol. The standard has been split into two parts.

  1. IEEE Std. 37.118.1-2011 which covers measurement provision
  2. IEEE Std. 37.118.2-2011 covers data communication

This document will summarize the IEEE C37.118.2 protocol, so that the user can understand and utilize the pySynphasor with lowest effort.

Packet Types

Four message types are defined here: data, configuration, header, and command.

  • Data messages are the measurements made by a PMU
  • Configuration is a machine-readable message describing the data types, calibration factors, and other meta-data for the data that the PMU/PDC sends.
  • Command are machine-readable codes sent to the PMU/PDC for control.

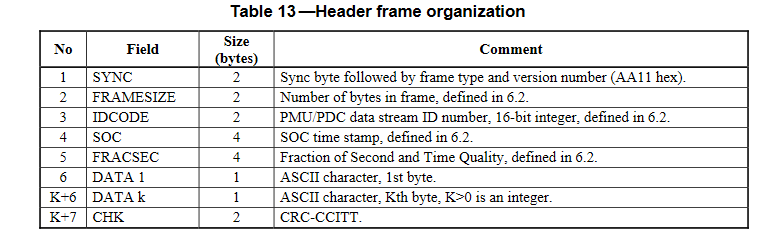

  • Header information is human readable descriptive information sent from the PMU/PDC.

A Communication Scenario

IEEE C37.118 Communication Scenario

  • In the synchrophasor protocol, PMU acts as a server, and PDC acts as a client.
  • PDC starts a session by sending a command that requests PMU to send a configuration message. Because, without a configuration packet, PDC cannot interpret the network traffic. PDC sends another command to start data transmission.
  • After receiving the configuration packet. Then, PMU transmits synchrophasor data continuously at a fixed rate defined in the configuration packet until further stop command from PDC.

Message Format

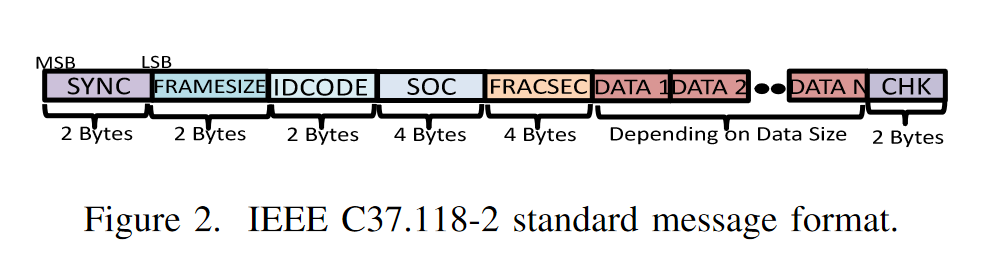

Each message begins with identification and synchronization word (SYNC) and ends with CRC checksum. The figure represents the common packet format for the four types of message, i.e., data, configuration, command and header. Only the DATA 1, DATA 2, … DATA N is different for different types of message

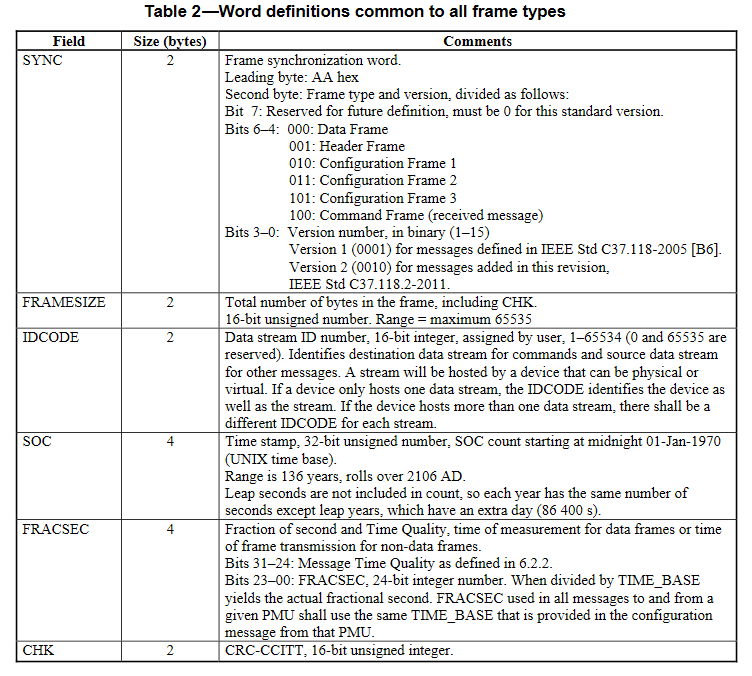

Common Frame

Type 0: data frame Type 1: header frame Type 2: CFG1 Type 3: CFG2 Type 4: command Type 5: CFG3

Command

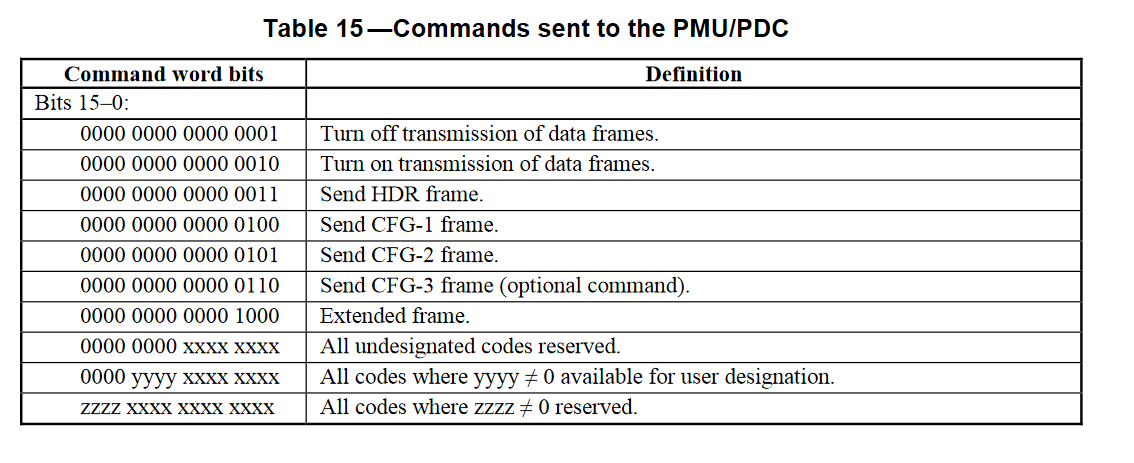

The 2 bytes command set is defined the in the table 15 of the standard

Data Frame

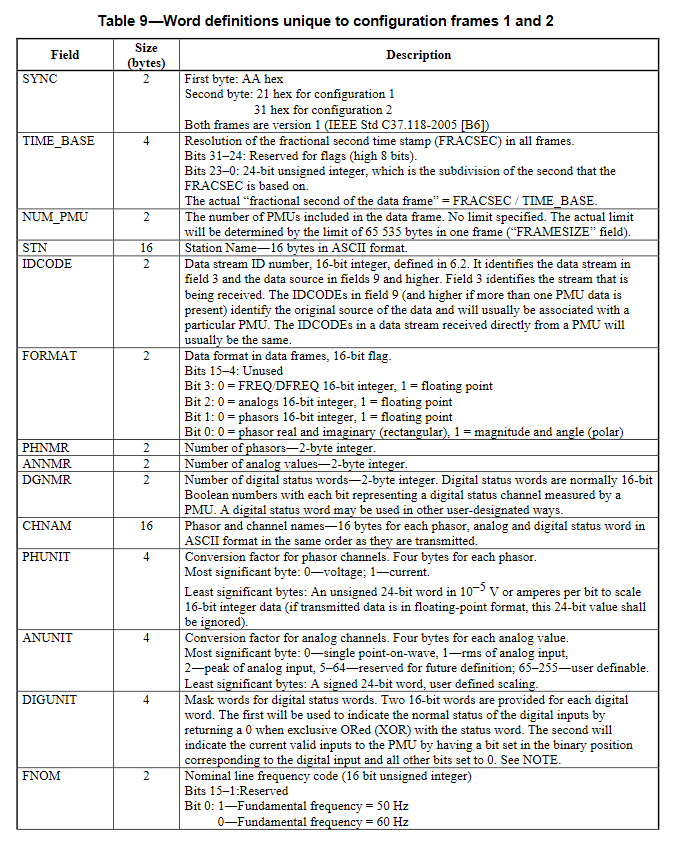

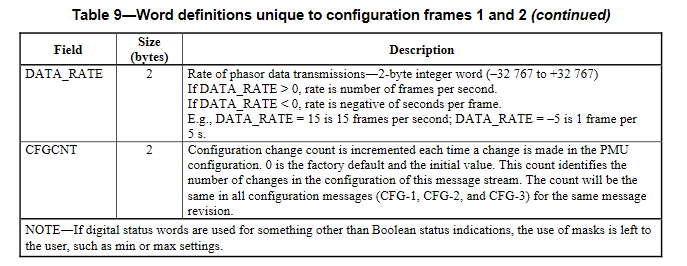

Configuration

References

[1] R. Khan, K. McLaughlin, D. Laverty, and S. Sezer, “IEEE C37.118-2 Synchrophasor Communication Framework Overview, Cyber Vulnerabilities Analysis and Performance Evaluation,” scitepress.org, 2016, doi: 10.5220/0005745001670178. [2] IEEE, “IEEE Std C37.118.2TM-2011,” IEEE Std C37.118.2-2011 (Revision of IEEE Std C37.118-2005), pp. 1–53, Dec. 2011, doi: 10.1109/IEEESTD.2011.6111222.
